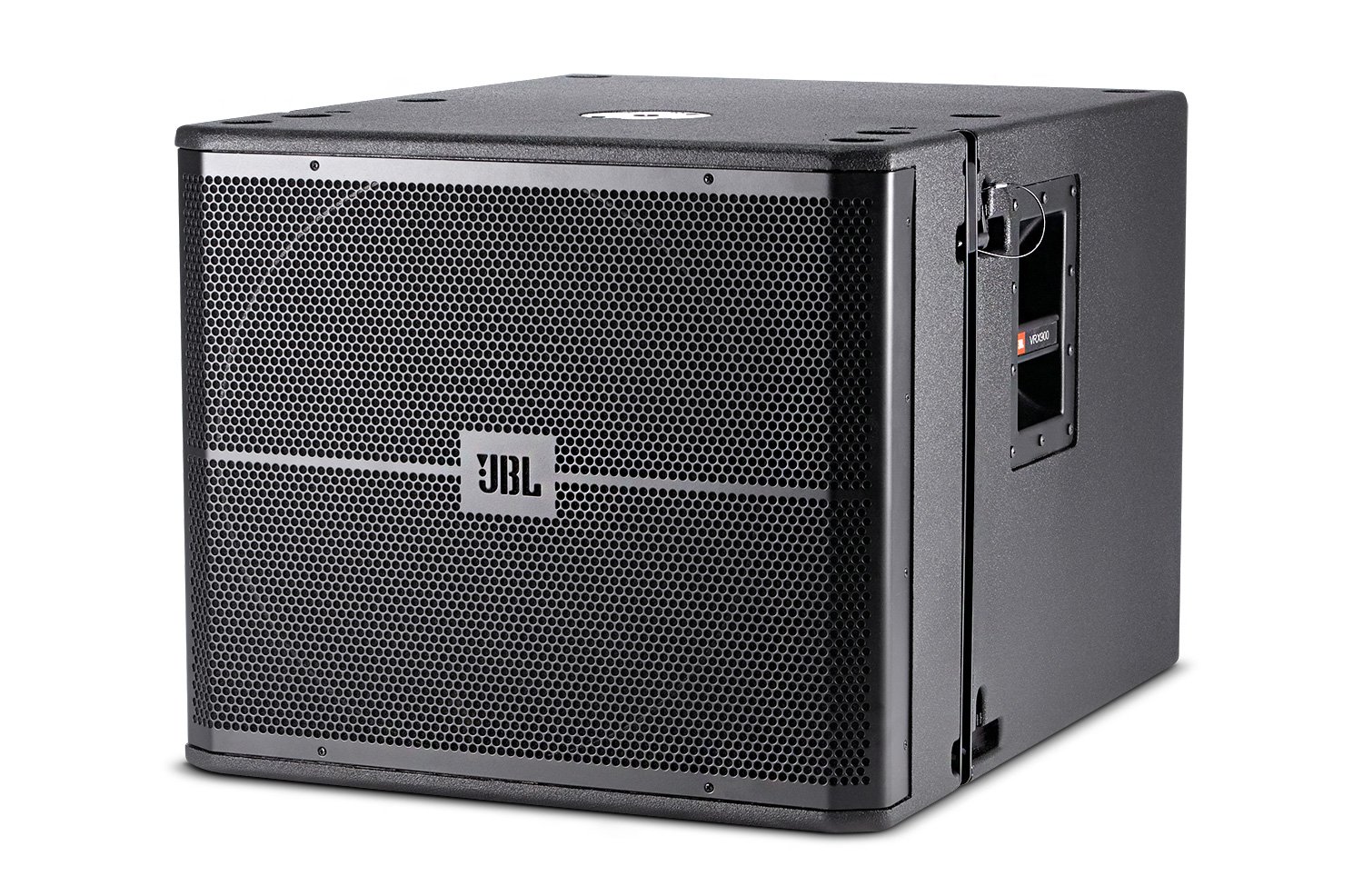

JBL Professional VRX918SP 18 inches High Power Powered Flying Subwoofer

Description The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18″ woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.FeaturesBuilt-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.Integral rigging hardware for simple connection of enclosures and optional array frame.20 mm threaded pole socket for solid, secure satellite speaker mounting.Large port area for reduced distortion. SpecificationsPower Rating1500 Watts PeakLF: Dual-Bridged Technology™, Class DFrequency Range31 Hz – 220 HzDimensions (H x W x D)508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)Frequency Range (-10dB)31 Hz – 220 HzMaximum Peak Output126 dB SPL at 1mBandpass Nominal ImpedanceLF: 2 x 2 ohmsLF Driver1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnetInputsXLR with loop throughUser ControlsInput Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.System ProcessingDSP based, resident in Input ModuleSystem ManagementDSP based limiters for mechanical and thermal protectionAC Power Operating Range90-132 VAC or 216-264 VAC, 50/60HzAC Line VoltageUser selectable: 120V/240V (-15%, 10%)AC Input ConnectorNeutrik PowerCon (NAC 3MPA)AC Loop Through ConnectorNeutrik PowerCon (NAC 3MPB)AC Current Requirements6A per system at 120V, 3A per system at 240VEnclosure18 mm birch plywood.Suspension / MountingOptional VRX-AF line-array frame kit or 10 mm forged eyeboltsFinishBlack DuraFlex™ finishGrillePowder coated, black, 16-gauge perforated steel with acoustically transparent foamNet Weight (each)38.5 kg (85 lb)Optional AccessoriesVRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kitOutputs1 x XLRNominal ImpedanceLF: 2 x 2 ohms
