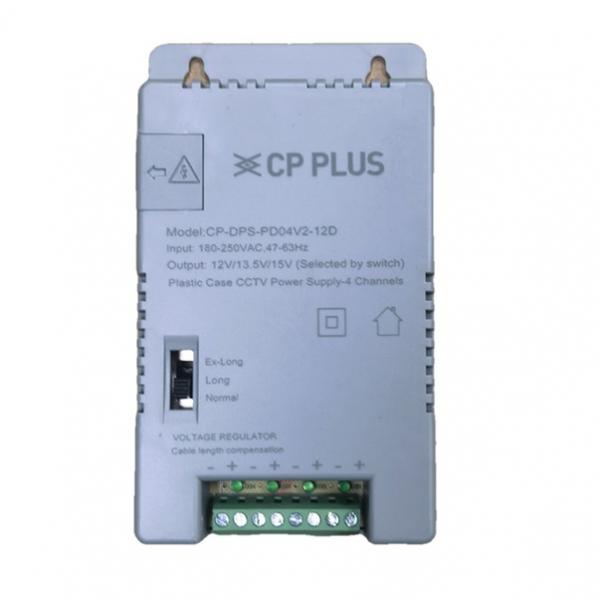

CP Plus Power Supply 4-Channel (CP-DPS-PD04V2-12D)

Specification Input voltage 180~264V AC Output voltage 12V DC Current Range 0~3A Rated Power 36W Ripple & Noise (max.) 120mVp-p Voltage Adj. Range 11.4~12.6V Line Regulation ±1.0% Voltage Tolerance n/a Setup Rise time 2500ms, 15ms at full load Hold Up Time (Typ.) 25ms at full load Load Regulation ±5.0% Temperature coefficient ±0.03%/°C (0~50°C) Frequency Range 47~63HZ Efficiency (Typ.) 86% AC Current (Typ.) 1A/220VAC Inrush Current (Typ.) Cold Start: 40A/220V AC Leakage Current <2mA / 240VAC Over Load 110~200% rated output power, Protection type: Shut down O/P, recovers automatically Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH Working Humidity 20 ~ 90% RH Non-condensing Vibration 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z Dimension 144(L) x 80(W) x 33mm(H) Store temperature -20 ~ 85°C Working temperature -20 ~ 45°C Withstand Voltage I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC
