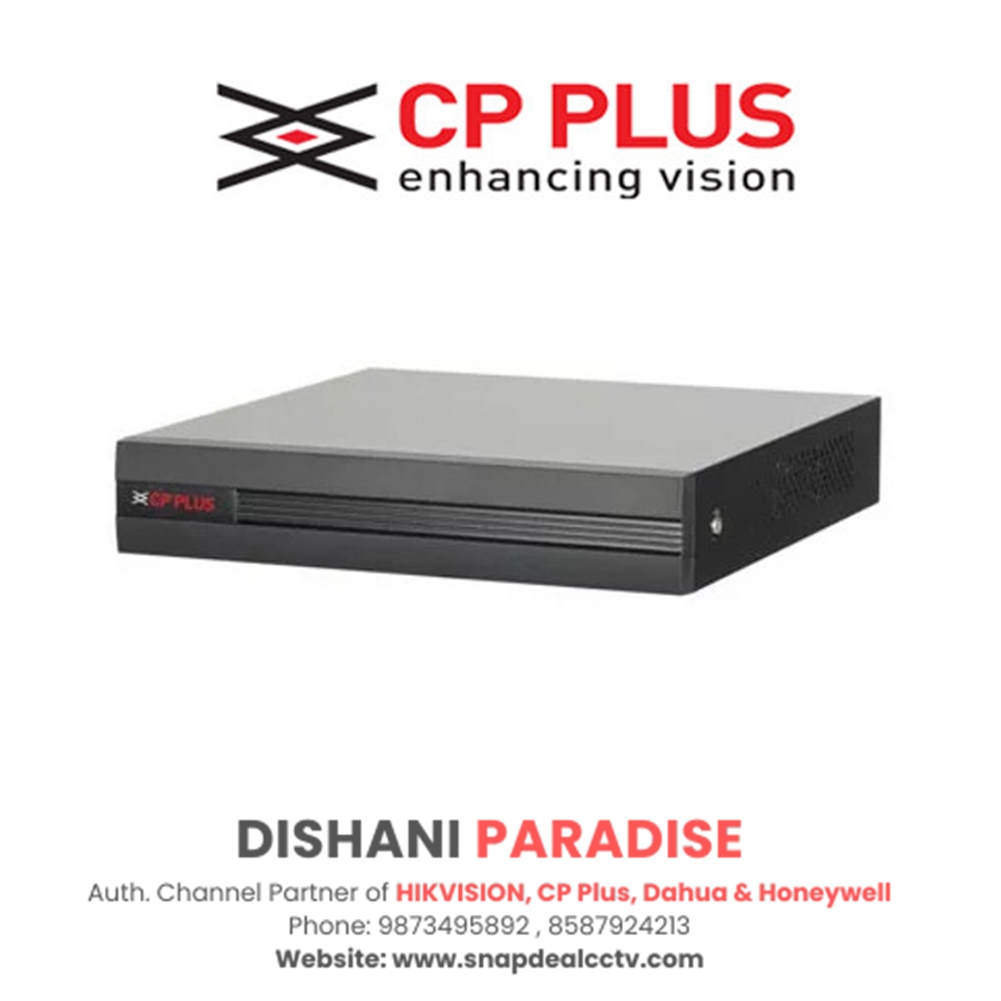

CP Plus HD 16 Channel 5MP H.265 DVR (CP-UVR-1601F1-IC)

CP-UVR-1601F1-IC 16Ch. 5M-N Digital Video Recorder Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 24 channels IP camera inputs, each channel up to 6MP Supports Full-channel AI Instastream Instastream/H.265 dual-stream video compression Up to 16 channels video stream (analog channel) SMD Plus Support 1 SATA HDD up to 16TB Each, 2 USB Ports 1 HDMI / 1 VGA Simultaneous Video Output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specification Processor Embedded processor Operating System Embedded LINUX IP Camera Input 16 8 channels, each channel up to 6MP Two-way Talk Reuse audio in/out, RCA User Interface GUI Video Output 1 HDMI, 1 VGA Video Resolution VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Compression AI Instastream/Instastream/H.265/H.264 /H.264 Video Recording Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps) Video Display Split 1/4/8/9/16 Resolution 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF Bit Rate 32 kbps–6144 kbps per channel Video Channel 16 channel, BNC Audio Compression G.711A, G.711U, PCM Audio Input 1 Ch., RCA (external) ; 16 Ch., BNC (coaxial) Audio Output 1 channel, RCA Motion Detection Support Video Loss Support Smart Phone iPhone, iPad, Android Phone Hard Disk 1 SATA port, up to 16TB Each Camera Blank Support Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Search Mode Time/Date, MD & Exact search (accurate to second) Backup Mode USB Device/Network Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom Max User Account 128 users Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Ethernet 1 RJ-45 port (10/100/100MB) Interface Ports 2 USB Ports (USB 2.0) Protocols HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant Power Supply DC12V/2A Power Consumption <12W (without HDD) Working Temp -10°C ~ 45°C ( 14°F ~ 113°F), 0 ~ 90% RH Dimension 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) Weight 0.93 kg (without HDD)
