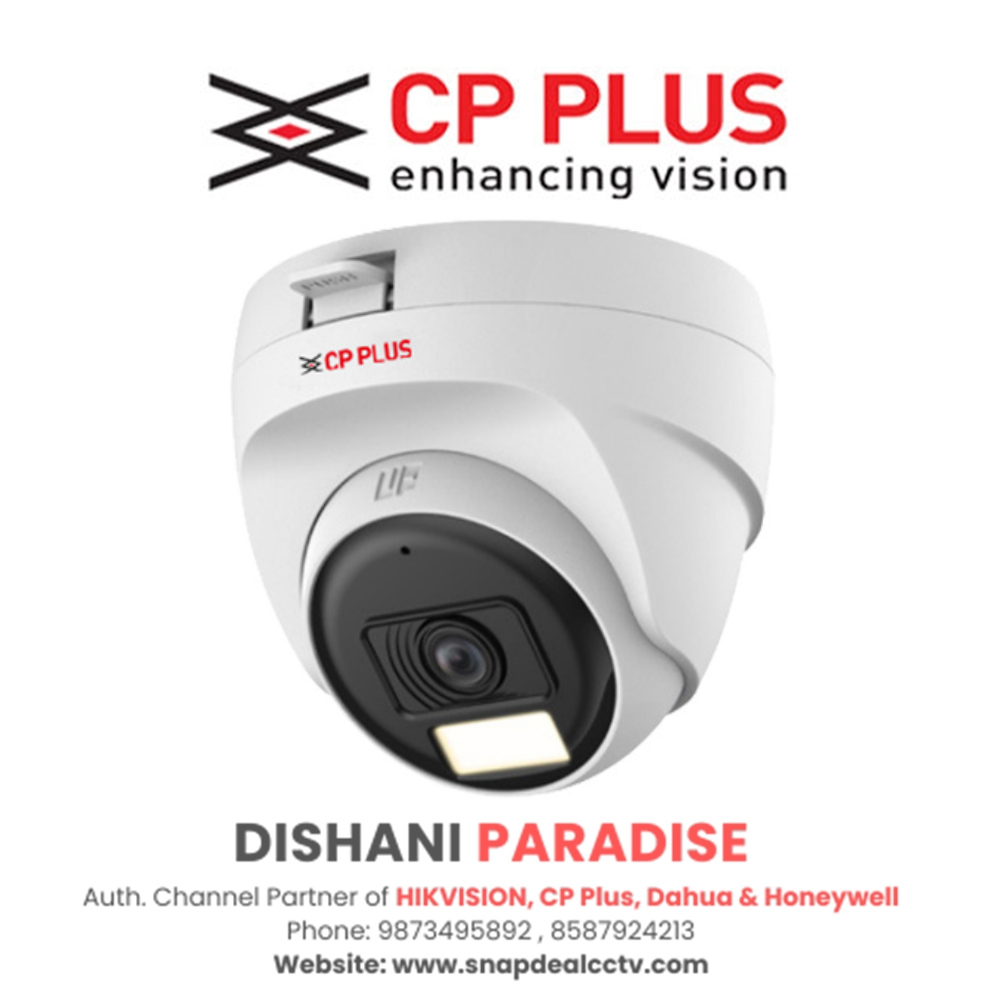

CP Plus 2.4MP HD Guard Dome CCTV

Image Sensor 2.4MP PS CMOS Image Sensor Minimum Illumination 0.02 [email protected] (Color, 30 IRE); 0.002 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) Shutter Speed PAL: 1/25~1/10000s NTSC: 1/30~1/10000s Gain Control (AGC) Auto/Manual White Balance Auto, Area white balance DORI Distance 2.8 mm: Detect: 44.7Mtr. , Observe: 17.9Mtr., Recognize: 8.9Mtr., Identify: 4.5Mtr. 3.6 mm: Detect: 50.0Mtr., Observe: 22.0Mtr., Recognize: 11.0 Mtr., Identify: 5.5Mtr. Close Focus Distance 3.6mm– 0.8Mtr. 2.8mm– 0.5Mtr. IR Distance IR Range of 30 Mtr. Warm Light Warm Light Rane of 20 Mtr. IR Control Auto/Manual Dual LED Numbers 2 (Warm light), 2 (IR light) Iris Control Fixed Lens Mount M12 Max. Aperture F2.0 Lens Type Fixed-focal Lens 3.6mm (2.8mm optional) S/N Ratio >65 dB Back Light Compensation BLC/HLC/DWDR Angle Adjustment Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Angle of View 3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117° Video Streaming CVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, AHD: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps TVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, CVBS: PAL: 960H NTSC: 960H Resolution 2.4MP(1920×1088); 960H (960 × 576/960 × 480) Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Day/Night Auto(ICR)/Color/B/W Noise Reduction 2D NR IR Mode Smart IR&WL, Mode, IR Mode Mirror Function Support Privacy Masking Off/On (8 areas, rectangle) OSD Menu Multi-language Audio Built-in Mic Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F) Operating Humidity Less than 95% RH Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Storage Humidity Less than 95% RH Power Source 12V DC ±25% Power Consumption Max 2 W (12 VDC, LED on) Casing Plastic Dimension 85.0 mm × 77.1 mm Weight 0.11 kg
